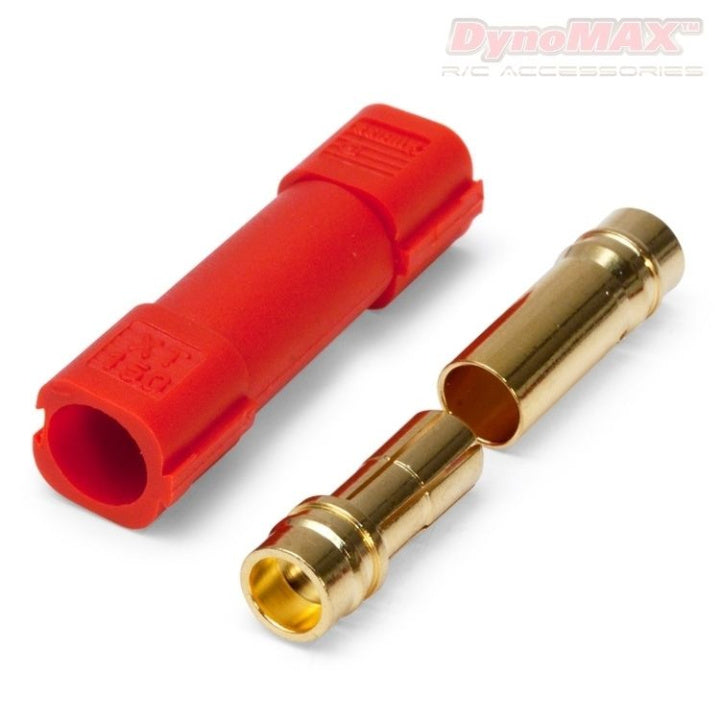

The D-Max Connector XT150 in red offers a secure and high-load plug connection for electrical applications requiring high current. These connectors are designed for currents of up to 120 Amps, making them ideal for high-performance RC models, drones, or other demanding electronic projects. The housings can be used individually or as a securely connected pair, depending on your needs, to create a reverse-polarity-protected connection.

Key Features

• Designed for a maximum continuous current of 100 A and peak currents of up to 120 A.
• Gold-plated 6mm contacts ensure low contact resistance and reliable power transmission.
• The red plastic housings can be slid together laterally to form a fixed unit.
• Suitable for assembly with cables where the stripped conductor has a diameter of up to 5 mm.
• The design ensures a firm plug connection that remains reliable even under vibrations.
• The red color facilitates identification and polarity assignment; also available in other colors.

Technical Specifications

• Contact Diameter: 6 mm
• Max. Conductor Diameter (stripped): 5 mm
• Current Rating: 100 A (Continuous), 120 A (Peak)
• Dimensions (per housing part): 40.3 mm x 9.6 mm x 10.8 mm
• Weight (per pair): 8 g
• Contact Material: Gold-plated for low resistance
• Housing Color: Red

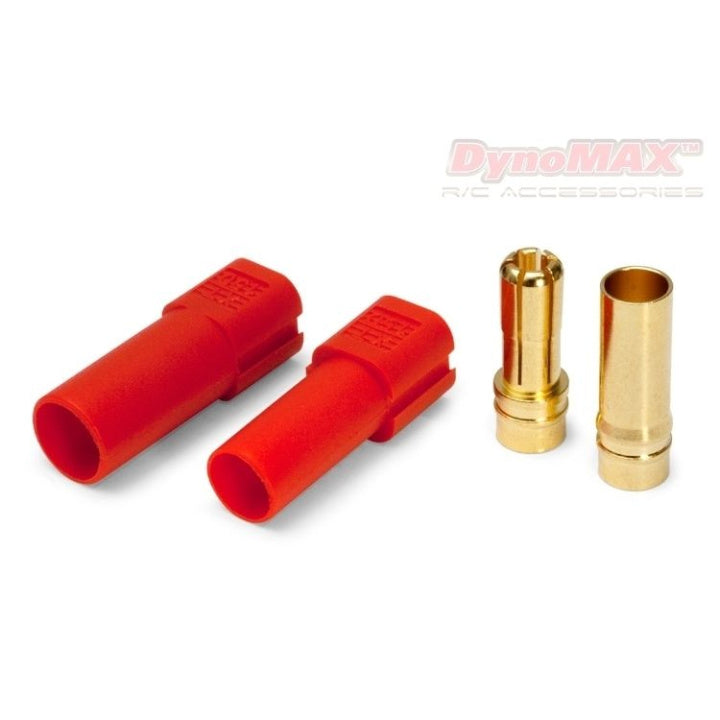

Scope of Delivery

• 1 x XT150 Male Connector with Red Housing
• 1 x XT150 Female Connector with Red Housing

Application

For assembly, the cable is routed through the housing, soldered to the contact, and then the contact is securely pressed into the housing. These connectors are aimed at experienced model builders and electronics enthusiasts who require a robust connection for high-current applications such as batteries and Electronic Speed Controllers (ESCs).
